Part Number

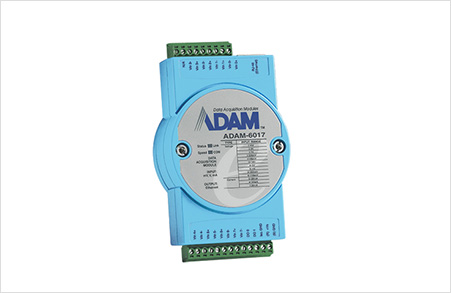

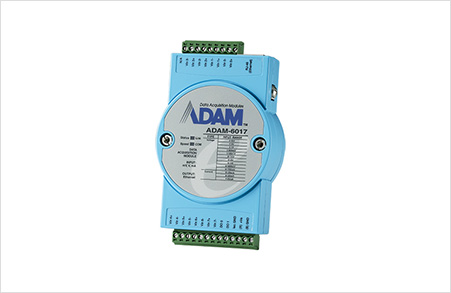

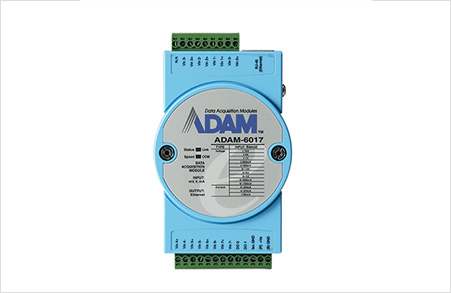

ADAM-6017-D

Display

LED Indicators

Status, Comm, Link, Speed

Power Supply

Power Requirement

10~30 VDC

Analog Input

Direct Sensor Input

J, K, T, E, R, S, B Thermocouple

Burn-out Detection

Yes

Channel Independent Configuration

Yes

Sampling Rates

10 sample/second

Resolution

16-bit

Channels

8 differential

Input Impedance

>10 MOhm

Span Drift

±25 ppm/°C

Zero Drift

± 6 µV/° C

General

Watchdog Timer

System (1.6 second) & Communication (programmable)

Temperature (Operating)

-10~70 °C (14~158 °F)

Humidity

20~95 %RH

Temperature (Storage)

-20~80 °C (-4~176 °F)

Interface

10/100Base-T(X)

Peer-to-Peer

Yes

GCL

Yes

Isolation Protection

2000 VDC

Communication Protocol

Modbus/TCP, TCP/IP, UDP, and HTTP

Communication Speed

Ethernet: 10/100Mbps

Comm. Distance

Ethernet: 100 m

Connector

1 x RJ-45 (LAN) & 1 x plug-in terminal block (DO and power) & 1 x 20-pin connector to daughterboard (TC)

Digital Output

Channels

8, open collector to 30V, 100 mA max. load

Power Dissipation

300 mW for each module
