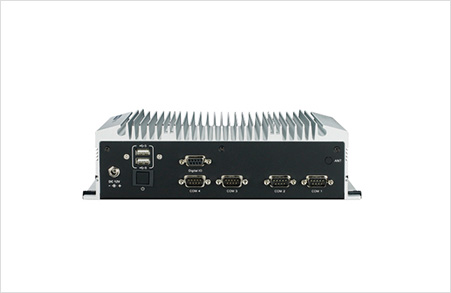

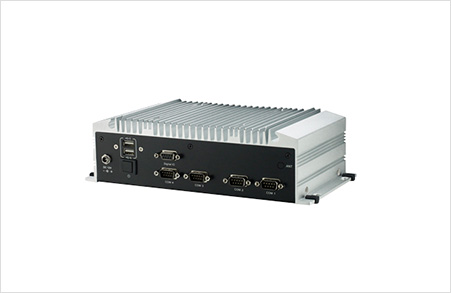

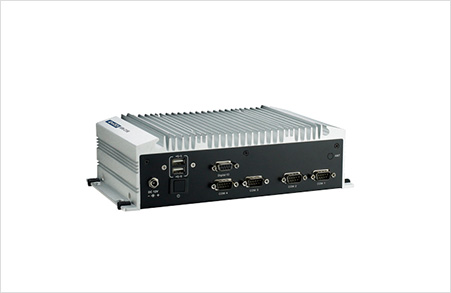

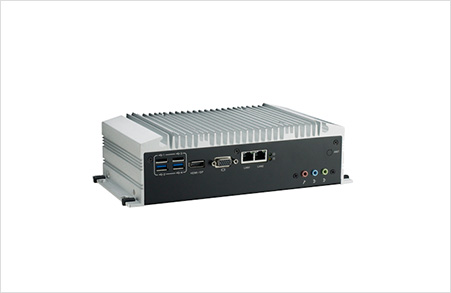

ARK-2150L
Intel ?Core? i3和i7處理器+Intel QM77 PCH
1×DDR3/DDR3L，SO-DIMM最高支持高達8GB
支持Direct X11，OpenGL3.1，OpenCL1.1，
獨立雙顯：VGA+HDMI/DisplayPort
支持Intel AMT8.0
最高支持2×GbE，2×USB 3.0，4×USB 2.0和4×COM接口
支持1個內置mSATA插槽和1個2.5‘HDD驅動器槽
鎖固型DC接口
支持iManager,SUSIAccess和嵌入式軟件APIs
IP40防護等級
規(guī)格

Part Number

ARK-2150L-S4A1E

ARK-2150L-S6A1E

ARK-2150L-S7A1E

ARK-2150LS-S7A1E

Processor

CPU

Intel Celeron 1047UE

Intel ULV 3rd Gen Core i3 3217UE

Intel ULV 3rd Gen Core i7 3517UE

Intel ULV 3rd Gen Core i7 3517UE

Core Number

2

2

2

2

Frequency

1.4 GHz

1.6 GHz

1.7 GHz (up to 2.8GHz)

1.7 GHz (up to 2.8GHz)

L3 Cache

2 MB

3 MB

4 MB

4 MB

Chipset

Intel QM77

Intel QM77

Intel QM77

Intel QM77

BIOS

AMI EFI 64Mbit

AMI EFI 64Mbit

AMI EFI 64Mbit

AMI EFI 64Mbit

Memory

Technology

DDR3 1600MHz,DDR3L 1333 MHz

DDR3 1600MHz,DDR3L 1333 MHz

DDR3 1600MHz,DDR3L 1333 MHz

DDR3 1600MHz,DDR3L 1333 MHz

Max. Capacity

8 GB

8 GB

8 GB

Default 4GB, max. up to 8GB

Socket

1 x 204-pin SODIMM

1 x 204-pin SODIMM

1 x 204-pin SODIMM

1 x 204-pin SODIMM

Graphics

Chipset

Intel QM77 Integrated GFX Gen 7

Intel QM77 Integrated GFX Gen 7

Intel QM77 Integrated GFX Gen 7

Intel QM77 Integrated GFX Gen 7

Graphic Engine

DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1

DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1

DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1

DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1

VGA

Integrated 340.4MHz RAMDAC, Max resolution up to 2048 x 1536 @ 75Hz

Integrated 340.4MHz RAMDAC, Max resolution up to 2048 x 1536 @ 75Hz

Integrated 340.4MHz RAMDAC, Max resolution up to 2048 x 1536 @ 75Hz

Integrated 340.4MHz RAMDAC, Max resolution up to 2048 x 1536 @ 75Hz

HDMI

Supports HDMI 1.4 for HD Video playback (no hotplug support); Max resolution up to 2560 x 1600 @ 60Hz on DisplayPort, Max resolution up to 1920 x 1200 @ 60Hz on HDMI

Supports HDMI 1.4 for HD Video playback (no hotplug support); Max resolution up to 2560 x 1600 @ 60Hz on DisplayPort, Max resolution up to 1920 x 1200 @ 60Hz on HDMI

Supports HDMI 1.4 for HD Video playback (no hotplug support); Max resolution up to 2560 x 1600 @ 60Hz on DisplayPort, Max resolution up to 1920 x 1200 @ 60Hz on HDMI

Supports HDMI 1.4 for HD Video playback (no hotplug support); Max resolution up to 2560 x 1600 @ 60Hz on DisplayPort, Max resolution up to 1920 x 1200 @ 60Hz on HDMI

Dual Display

Yes, VGA + HDMI or VGA + DisplayPort

Yes, VGA + HDMI or VGA + DisplayPort

Yes, VGA + HDMI or VGA + DisplayPort

Yes, VGA + HDMI or VGA + DisplayPort

Ethernet

LAN1

10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan

10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan

10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan

10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan

LAN2

10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan

10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan

10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan

10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan

Audio

Interface

Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in

Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in

Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in

Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in

I/O Interface

Serial Port

2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control

2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control

2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control

2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control

USB Interface

2 x USB 3.0 ports and 4 x USB 2.0 ports

2 x USB 3.0 ports and 4 x USB 2.0 ports

2 x USB 3.0 ports and 4 x USB 2.0 ports

2 x USB 3.0 ports and 4 x USB 2.0 ports

Other

Digital IO

8-bits programmable general purpose input/output

8-bits programmable general purpose input/output

8-bits programmable general purpose input/output

8-bits programmable general purpose input/output

Watchdog Timer

255 levels timer interval, setup by software

255 levels timer interval, setup by software

255 levels timer interval, setup by software

255 levels timer interval, setup by software

Expansion

Mini PCIe

2 x Full-size Mini PCIe (One supports mSATA & the other with SIM holder); 1 x Half-size Mini PCIe

2 x Full-size Mini PCIe (One supports mSATA & the other with SIM holder); 1 x Half-size Mini PCIe

2 x Full-size Mini PCIe (One supports mSATA & the other with SIM holder); 1 x Half-size Mini PCIe

2 x Full-size Mini PCIe (One supports mSATA & the other with SIM holder); 1 x Half-size Mini PCIe

Storage

HDD

Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s)

Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s)

Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s)

Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s)

SSD

Supports one internal mSATA socket

Supports one internal mSATA socket

Supports one internal mSATA socket

Supports one internal mSATA socket

Software Support

Microsoft Windows

Windows 7, Windows 7 Embedded, XP Professional, XP Embedded

Windows 7, Windows 7 Embedded, XP Professional, XP Embedded

Windows 7, Windows 7 Embedded, XP Professional, XP Embedded

WES7E 64 bit built-in ENG/JP/TC/SC

Linux

Ubuntu 12.04

Ubuntu 12.04

Ubuntu 12.04

Ubuntu 12.04

Power

Power Type

AT/ATX

AT/ATX

AT/ATX

AT/ATX

Input Voltage

12 VDC, ± 10%

12 VDC, ± 10%

12 VDC, ± 10%

12 VDC, ± 10%

Power Adaptor

AC to DC, DC12V/5A, 60 W (Optional)

AC to DC, DC12V/5A, 60 W (Optional)

AC to DC, DC12V/5A, 60 W (Optional)

AC to DC, DC12V/5A, 60 W (Optional)

Consumption

Typical 9.4 W, Max. 24.96 W (with Intel Core i7 3517UE CPU and 2 GB memory)

Typical 9.4 W, Max. 24.96 W (with Intel Core i7 3517UE CPU and 2 GB memory)

Typical 9.4 W, Max. 24.96 W (with Intel Core i7 3517UE CPU and 2 GB memory)

Typical 9.4 W, Max. 24.96 W (with Intel Core i7 3517UE CPU and 2 GB memory)

Mechanical

Construction

Aluminum housing

Aluminum housing

Aluminum housing

Aluminum housing

Mounting

Din-Rail mounting, Desk/wall-mounting, VESA mounting

Din-Rail mounting, Desk/wall-mounting, VESA mounting

Din-Rail mounting, Desk/wall-mounting, VESA mounting

Din-Rail mounting, Desk/wall-mounting, VESA mounting

Dimensions

264.5 x 75.1 x 133.0 mm (10.41" x 2.96" x 5.24")

264.5 x 75.1 x 133.0 mm (10.41" x 2.96" x 5.24")

264.5 x 75.1 x 133.0 mm (10.41" x 2.96" x 5.24")

264.5 x 75.1 x 133.0 mm (10.41" x 2.96" x 5.24")

Weight

2.3 kg (5.07 lb)

2.3 kg (5.07 lb)

2.3 kg (5.07 lb)

2.3 kg (5.07 lb)

Environment

Operational Temperature

With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow

With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow

With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow

0 ~ 45° C

Storage Temperature

-40 ~ 85° C (-40 ~ 185° F)

-40 ~ 85° C (-40 ~ 185° F)

-40 ~ 85° C (-40 ~ 185° F)

-40 ~ 85° C (-40 ~ 185° F)

Relative Humidity

95% @ 40° C (non-condensing)

95% @ 40° C (non-condensing)

95% @ 40° C (non-condensing)

95% @ 40° C (non-condensing)

Vibration during Operation

With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.

With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.

With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.

With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.

Shock During Operation

With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration

With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration

With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration

With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration

Certification

EMC

CE, FCC Class A, CCC, BSMI

CE, FCC Class A, CCC, BSMI

CE, FCC Class A, CCC, BSMI

CE, FCC Class A, CCC, BSMI

Safety Certifications

UL, CCC, BSMI

UL, CCC, BSMI

UL, CCC, BSMI

UL, CCC, BSMI
