Processor

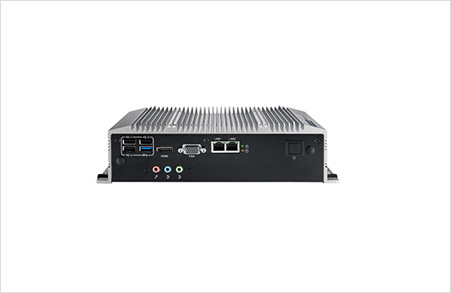

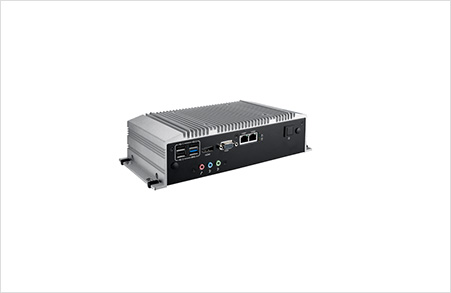

ARK-2121L-U0A2E

CPU

Intel Celeron Processor J1900 Quad Core

Core Number

4

Frequency

2.0 GHz, turbo boost up to 2.42 GHz

L2 Cache

2 MB

BIOS

AMI EFI

Memory

Technology

DDR3L 1333 MHz

Max. Capacity

8 GB

Socket

1 x 204-pin SO-DIMM

Graphics

Chipset

Intel Celeron J1900 SoC integrated, 7th Gen. Intel Graphic core

Graphic Engine

DirectX 11.1, OCL 1.2, OGL 3.2; Encode: H.264, MPEG2/4, VC1, WMV9; Decode: H.264, MPEG2

VGA

Up to 2048 x 1152 @ 60Hz

HDMI

HDMI 1.4a for HD video playback, 1080P at 60Hz

Display port

Up to 2048 x 1152 at 60Hz(by projuct only)

Dual Display

Yes, VGA + HDMI

Ethernet

LAN1

10/100/1000 Mbps Intel i210 GbE, support Wake On Lan

LAN2

10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

Audio

Interface

Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in

I/O Interface

Serial Port

2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control

USB Interface

1 x USB 3.0, 3 x USB 2.0

Other

Watchdog Timer

255 levels timer interval, setup by software

Expansion

Mini PCIe

1 x full size Mini PCIe with SIM holder

Storage

HDD

Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s)

SSD

1 x full size mSATA socket, with USB signal co-lay

Software Support

Microsoft Windows

WES8, Windows 8, WES7, Windows 7

Linux

Support by project

Power

Power Type

ATX

Input Voltage

9 ~ 36 VDC

Power Adaptor

AC to DC, DC19 V/3.42 A, 65 W (Optional)

Consumption

Typical 7.3 W, Max. 13.3 W

Mechanical

Construction

Aluminum housing

Mounting

Din-Rail mounting, Desk/wall-mounting, VESA mounting

Dimensions

264.5 x 68.4 x 133.0 mm (10.41" x 2.69" x 5.24")

Weight

2.3 kg (5.07 lb)

Environment

Operating Temperature

With extended temperature peripherals: -20 ~ 70° C (-4 ~ 158° F) with 0.7m/s air flow;With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow

Storage Temperature

-40 ~ 85° C (-40 ~ 185° F)

Relative Humidity

95% @ 40° C (non-condensing)

Vibration during Operation

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.

Shock During Operation

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

EMC

CE/FCC Class A, CCC, BSMI

Safety Certifications

UL, CCC, BSMI
