Part Number

ARK-1124H-S6A1E

Processor

CPU

Intel Atom? E3940 Quad Core SoC

Core Number

4

Frequency

1.6 GHz, turbo burst 1.8GHz

L2 Cache

2 MB

BIOS

AMI EFI 64 Mbit

Memory

Technology

DDR3L 1866 MHz

Max. Capacity

8 GB

Socket

1 x 204-pin SO-DIMM

Graphics

Chipset

Intel® HD Graphics 500

Graphic Engine

4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG

HDMI

HDMI 1.4b 3840 x 2160 @ 30Hz

Dual Display

Yes, HDMI + HDMI, dual display support 4K2K resolution

Ethernet

LAN1

10/100/1000 Mbps Intel i210 GbE, support Wake On Lan

LAN2

10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

Audio

Interface

Realtek ALC888S, High Definition Audio, Line-out, Mic-in

I/O

Serial port

1 x RS-232/422/485 port with auto flow control

USB

4 x USB 3.0

Others

Watchdog timer

255 levels timer interval, setup by software

Expansion

Mini PCIe

1 x full-size mPCIe for WLAN/WWAN with nano SIM holder

M.2

1 x E key for WiFi

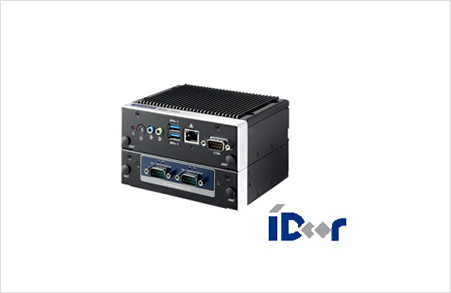

iDoor Module

1, optional (2nd layer)

Storage

2.5" HDD/SSD

Supports 1 x 2.5" SATA III Drive Bay (Compatible with 9.5mm height)

mSATA

1x Half-size mSATA (by CTOS or T-PN)

TPM

SLB9665XQ2.0 FW5.62 (By T-PN, MOQ 30pcs)

Software Support

Microsoft Windows

Windows 10 Enterprise, Windows 10 IoT Core

Linux

Support by project

Power

Power Type

AT/ATX

Input Voltage

12VDC (Optional 12~24V power module)

Power Adaptor

AC to DC, DC12 V/5 A, 60 W with lockable DC Jack

Consumption

Typical 6.02 W, Max. 33.7 W

Mechanical

Construction

Aluminum housing

Mounting

DIN-Rail/Wall/VESA Mounting Kits (Optional)

Dimensions

133 x 46.4 x 94.2mm (5.24" x 1.83" x 3.71")

Weight

0.7 kg (1.55 lb)

Environment

Operational Temperature

With extended temp. peripherals: -30 ~ 70 C (-22 ~ 158F) w/ turbo burst off with 0.7 m/s air flow; With 2.5 inch hard disk: 0 ~ 40 °C (32 ~ 104°F) with 0.7 m/s air flow

Storage Temperature

-40 ~ 85° C (-40 ~ 185° F)

Relative Humidity

95% @ 40° C (non-condensing)

Vibration during Operation

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis; With HDD: 0.5Grms, IEC 60068-2-64, random, 5~500Hz, 3 axes, 1hr/axis

Shock During Operation

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration; With HDD: 10G, IEC 60068-2-27, half sine, 11 ms duration

Certification

EMC

CE/FCC Class B, CCC, BSMI

Safety Certifications

UL, CB, CCC, BSMI
