Part Number

ARK-1124U-S1A1E

Processor

CPU

Intel® Celeron® N3350 Dual Core SoC

Core Number

2

Frequency

1.1 GHz, turbo burst 2.4 GHz

L2 Cache

2 MB

BIOS

AMI EFI 64Mbit

Memory

Technology

DDR3L 1866 MHz

Max. Capacity

8 GB

Socket

1 x 204-pin SO-DIMM

Graphics

Chipset

Intel® HD Graphics 500

Graphic Engine

4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG

VGA

Up to 2048 x 1280 @ 60Hz

Ethernet

LAN1

10/100/1000 Mbps Intel i210 GbE, support Wake On Lan

LAN2

10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

Audio

Interface

Realtek ALC888S, High Definition Audio. Line-out, Line-in

I/O

Serial port

2 x RS-232/422/485 port with auto flow control

USB

4 x USB 3.0

Others

Watchdog timer

255 levels timer interval, setup by software

TPM

Infineon SLB9665XQ 2.0

Expansion

Mini PCIe

1 x full-size mPCIe for WLAN/WWAN with SIM holder

M.2

1 x M.2 E-key for WIFI (by CTOS or T-PN)

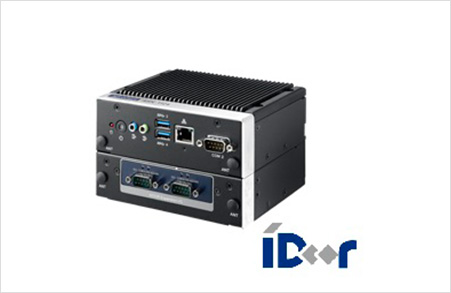

iDoor Module

1, optional (2nd layer)

Storage

2.5" HDD/SSD

Supports 1 x SATA III Drive Bay (Compatible with 9.5mm height)

Software Support

Microsoft Windows

Win 10 IoT Enterprise LTSB

Linux

Support by project

Power

Power Type

AT/ATX

Input Voltage

12VDC (Optional 12~24V power module)

Power Adaptor

AC to DC, DC12 V/5 A, 60 W with lockable DC Jack

Consumption

Typical 5 W, Max. 33.7 W

Mechanical

Construction

Aluminum housing

Mounting

DIN-Rail/Wall/VESA Mounting Kits (Optional)

Dimensions

133 x 46.4 x 94.2mm (5.24" x 1.83" x 3.71")

Weight

0.7 kg (1.55 lb)

Environment

Operational Temperature

With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow, With 2.5-inch hard disk 0 ~ 40 °C (32 ~ 104 °F) with 0.7m/s air flow

Storage Temperature

-40 ~ 85° C (-40 ~ 185° F)

Relative Humidity

95% @ 40° C (non-condensing)

Vibration during Operation

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis; With HDD: 0.5Grms, IEC 60068-2-64, random, 5~500Hz, 1hr/axis

Shock During Operation

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration; With HDD: 10G, IEC 60068-2-27, half sine, 11 ms duration

Certification

EMC

CE, FCC Class B, CCC, BSMI

Safety Certifications

UL, CB, CCC, BSMI
