Part Number

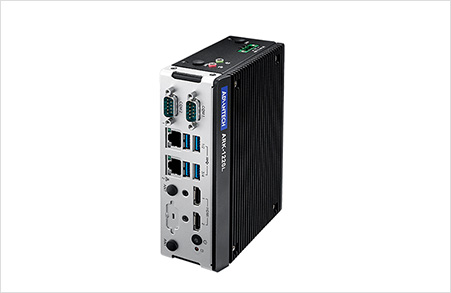

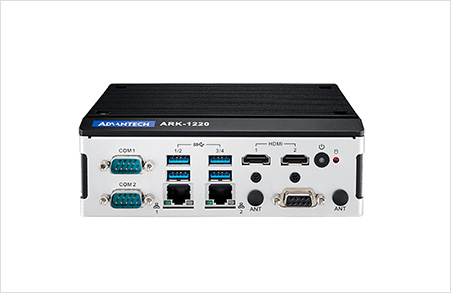

ARK-1220L-S6A1E

Processor

CPU

Intel Atom E3940 Quad Core Soc

Frequency

1.6 GHz, turbo burst 1.8GHz

Core Number

4

BIOS

AMI EFI 64 Mbit

Memory

Technology

DDR3L 1866 MHz

Max. Capacity

8 GB

Socket

2 x 204-pin SO-DIMM, 2 x 4GB or 1 x 8GB memory

Graphics

Chipset

Intel HD Graphics 500, CPU integrated

Graphic Engine

Gen9 Low Power; 18 Execution Units Media Codec Supported: H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG, 3D HW Acceleration: OpenGL 4.4, DirectX* 12, OpenCL* 2.0

HDMI

HDMI1 : 3840 x 2160 @ 30Hz; HDMI2 : 3840 x 2160 @ 30Hz

Dual Display

HDMI1 + HDMI2

Ethernet

LAN1

10/100/1000 Mbps Intel i210 GbE, support Wake On Lan

LAN2

10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

Audio

Interface

Realtek ALC888S, High Definition Audio, Line-out, Mic-in

I/O

Serial port

2 x RS-232/422/485 with auto flow control, COM2 with 5V/12V power supply

USB

4 x USB 3.0

GPIO

8-bit Programmable DIO (Optional)

Expansion

Mini PCIe

1 x Full-size mPCIe with SIM holder

M.2

1 x M.2 2230 E key for WIFI module

Storage

2.5" HDD/SSD

1 x 2.5" SATAIII Drive bay (compatible with 15mm height)

mSATA

1 x Full-size mSATA (*share with mPCIe slot)

Others

Watchdog timer

255 levels timer interval, setup by software

TPM

SLB9665XQ2.0 FW5.62 (By T-PN, MOQ 30pcs)

Software Support

Microsoft Windows

Windows 10 Enterprice

Linux

Support by project

Power

Power Type

AT/ATX

Input Voltage

12 ~ 28 VDC

Power Adaptor

AC to DC, 60W (Optional)

Consumption

TBD

Mechanical

Construction

Aluminum housing

Mounting

DIN-rail/Wall Mount

Dimensions

53.5 x 158 x 114 mm (2.11" x 6.22" x 4.49")

Weight

1.2 kg (2.65lb)

Environment

Operational Temperature

With extended temp. peripherals: -30 ~ 70 C (-22 ~ 158F) w/ turbo burst off with 0.7 m/s air flow; With 2.5 inch hard disk: 0 ~ 40 °C (32 ~ 104°F) with 0.7 m/s air flow

Storage Temperature

-40 ~ 85° C (-40 ~ 185° F)

Relative Humidity

95% @ 40° C (non-condensing)

Vibration during Operation

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

Shock During Operation

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

Certification

EMC

CE/FCC Class B, CCC, BSMI

Safety Certifications

UL, CB, CCC, BSMI
