Part Number

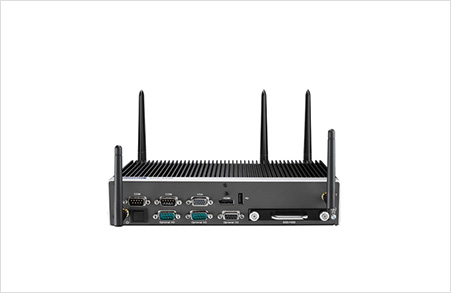

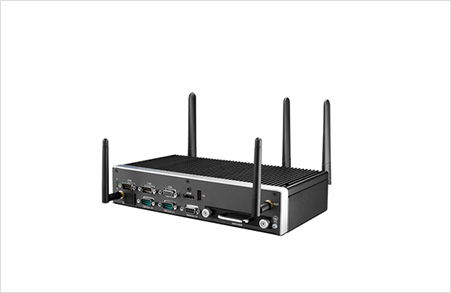

ARK-2231R-S9A1E

Processor

CPU

Intel® E3845 Quad Core

Core Number

4

Frequency

1.91 GHz

L2 Cache

2 MB

BIOS

AMI EFI

Memory

Technology

DDR3L 1333 MHz

Max. Capacity

8 GB

Socket

1 x 204-pin SO-DIMM

Graphics

Chipset

Intel Gen7 Graphics

Graphic Engine

DirectX 11.1, OCL 1.2, OGL 3.2; Encode: H.264, MPEG2/4, VC1, WMV9; Decode: H.264, MPEG2

VGA

Up to 2560 x 1600 @ 60Hz

HDMI

HDMI 1.4a for HD video playback, 1080P at 60Hz

Dual Display

Yes, VGA + HDMI

Ethernet

LAN1

10/100/1000 Mbps Intel i210 GbE, support Wake On Lan, M12 X-Coded

LAN2

10/100/1000 Mbps Intel i210 GbE, support Wake On Lan, M12 X-Coded

Audio

Interface

Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in

I/O

Serial port

2 x RS-232/422/485 with automatic flow control

USB

1 x USB2.0/3.0 M12, 1 x USB2.0 M12 A-Coded, 1 x USB2.0 Type A

GPIO

1x 8bit DIO

Other

GPS

On board standalone GPS, support GPS, GLONASS, GALILEO , BeiDou and QZSS signals

G-Sensor

On board high resolution G-Sensor, up to 13-bit resolution at ± 16g

Watchdog Timer

255 levels timer interval, setup by software

Expansion

Mini PCIe

1 x Full-size Mini PCIe (SATA/PCIe/USB), 1 x Full-size Mini PCIe (PCIe/USB), 1 x Full-size Mini PCIe (USB) w/Accessible SIM socket

Storage

2.5" HDD/SSD

1 x 2.5" SATA drive bay

mSATA

1 x full size mSATA socket

Software Support

Microsoft Windows

Win7, WES7, Win8, WSE8, Win10

Linux

Support by project

Power

Power Type

ATX

Input Voltage

DC 24V - StandardDC 48/72/110V - Options

Power Adaptor

24V/ 150W

Consumption

TBD

Mechanical

Construction

Aluminum housing

Mounting

Wall / VESA / DIN-Rail Kit options

Dimensions

260 x 57 x 160.2 mm

Weight

2.3 kg (5.07 lb)

Environment

Operational Temperature

With extended temperature peripherals: -40 ~ 70 °C EN50155 TX

Storage Temperature

-40 ~ 85° C (-40 ~ 185° F)

Relative Humidity

95% @ 40° C (non-condensing)

Vibration during Operation

IEC61373 Category1, Class B

Shock During Operation

IEC61373 Category1, Class B

Certification

EMC

CE/FCC Class B, CCC, BSMI, EN50155

Safety Certifications

UL, CCC, BSMI, CB, EN50155
