Part Number

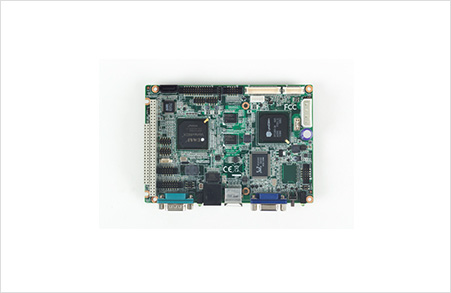

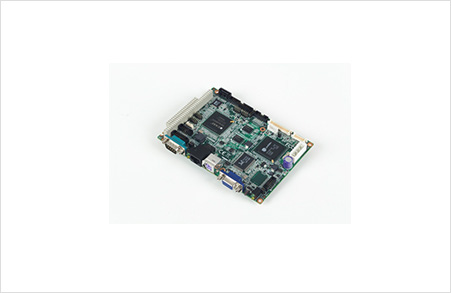

PCM-9343EFG-S6A1E

PCM-9343EF-S6A1E

PCM-9343EL-S6A1E

Form Factor

Form Factor

3.5" CPU Boards

3.5" CPU Boards

3.5" CPU Boards

Processor

CPU

DM&P Vortex86DX 800 MHz, supports Floating Point Unit (FPU)

DM&P Vortex86DX 800 MHz, supports Floating Point Unit (FPU)

DM&P Vortex86DX 800 MHz, supports Floating Point Unit (FPU)

CPU TDP

2.02 W @ 800 MHz

2.02 W @ 800 MHz

2.02 W @ 800 MHz

Frequency

800MHz

800MHz

800MHz

Core Number

1

1

1

L2 Cache

256KB

256KB

256KB

BIOS

Award integrated 16Mbit ROM in SOC

Award integrated 16Mbit ROM in SOC

Award integrated 16Mbit ROM in SOC

Memory

Technology

DDR2 333MHz

DDR2 333MHz

DDR2 333MHz

Max. Capacity

512MB

512MB

512MB

Onboard Memory

On board 512MB

On board 256MB

On board 256MB

Display

Controller

SMI SM712 2D graphics chip/-

SMI SM712 2D graphics chip/-

-

Graphic Engine

62.5MHz single clock/cycle engine (EM+) 86MHz single clock/cycle engine (EM4+) Designed to accelerate DirectDraw) /-

62.5MHz single clock/cycle engine (EM+) 86MHz single clock/cycle engine (EM4+) Designed to accelerate DirectDraw) /-

-

Graphic Memory

4MB internal memory/-

4MB internal memory/-

-

VGA

Support up to 1024 x 768@85Hz/-

Support up to 1024 x 768@85Hz/-

-

LCD (TTL/LVDS/eDP)

LVDS: Single channel 18/24-bit up to 1024 x 768 (1280x1024 supported by request) TTL: Support up to 1024x 768@24-bit /-

LVDS: Single channel 18/24-bit up to 1024 x 768 (1280x1024 supported by request) TTL: Support up to 1024x 768@24-bit /-

-

Multiple Display

VGA+TTL, VGA+LVDS

VGA+TTL, VGA+LVDS

-

Expansion

I2C Bus

1

1

1

PC/104

1

1

1

Ethernet

Controller

Ehternet1: 10/100 Mbps on DM&P Vortex86DX Ehternet2: 10/100 Mbps on Realtek RTL8110SC

Ehternet1: 10/100 Mbps on DM&P Vortex86DX

Ehternet1: 10/100 Mbps on DM&P Vortex86DX

Speed

10/100 Mbps

10/100 Mbps

10/100 Mbps

Connector

RJ45 on Ethernet1, box header on Ethernet2

RJ45 on Ethernet1

RJ45 on Ethernet1

Watchdog Timer

WatchDog Timer

Yes

Yes

Yes

Storage

SATA

1 x SATA (Max. Data Transfer Rate 150 MB/s)/-

1 x SATA (Max. Data Transfer Rate 150 MB/s)/-

-

CompactFlas

CompactFlash Type I/II (Primary Master IDE Channel) Supports 2 channels Ultra-DMA 100

CompactFlash Type I/II (Primary Master IDE Channel) Supports 2 channels Ultra-DMA 100

CompactFlash Type I/II (Primary Master IDE Channel) Supports 2 channels Ultra-DMA 100

I/O

USB2.0

4

4

2

GPIO

1, 16-bit GPIO

1, 16-bit GPIO

1, 16-bit GPIO

LPT

1

1

1

COM Port

4 ( 3 x RS232, 1 x RS232/ 422/ 485)

4 ( 3 x RS232, 1 x RS232/ 422/ 485)

2 ( 1 x RS232, 1 x RS232/ 422/ 485)

Keypad

1

1

1

Reset Button

1

1

1

Power

Power Type

AT

AT

AT

Power Supply Voltage

Single 5V,±5% (+12V option for LCD)

Single 5V,±5% (+12V option for LCD)

Single 5V,±5% (+12V option for LCD)

Connector

1x4pin power connector

1x4pin power connector

1x4pin power connector

Power Consumption (Idle)

1.03 A @ 5 V (5.15 W)

0.81 A @ 5 V (4.05 W)

0.44 A @ 5 V (2.2 W)

Power Consumption (Full Load)

1.18 A @ 5 V (5.9 W)

1.09 A @ 5 V (5.45 W)

0.75 A @ 5 V (3.75 W)

Battery

Lithium 3 V / 210 mAH

Lithium 3 V / 210 mAH

Lithium 3 V / 210 mAH

Environment

Operational Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Physical

Dimension (mm)

146 x 102 mm

146 x 102 mm

146 x 102 mm

Weight

0.64kg (1.41 lb), weight of total package

0.64kg (1.41 lb), weight of total package

0.64kg (1.41 lb), weight of total package

Construction

Aluminum with fanless design

Aluminum with fanless design

Aluminum with fanless design

Operating System

Microsoft Windows

Yes

Yes

Yes

Linux

Yes

Yes

Yes

SUSIAccess

SUSI 3.0

SUSI 3.0

SUSI 3.0

Certification

EMC

CE, FCC

CE, FCC

CE, FCC
