Part Number

MIO-2263E-S3A1E

MIO-2263EZ22GS3A1E

MIO-2263EZ-2GS3A1E

Processor

CPU

Intel Atom E3825

Intel Atom E3825

Intel Atom E3825

Frequency

1.33 GHz

1.33 GHz

1.33 GHz

Core Number

2

2

2

L2 Cache

1M

1M

1M

Max Turbo Frequency

-

-

-

Chipset

Intel Atom SoC processor integrated

Intel Atom SoC processor integrated

Intel Atom SoC processor integrated

BIOS

AMI EFI 64 Mbit

AMI EFI 64 Mbit

AMI EFI 64 Mbit

Memory

Technology

DDR3L 1066 MHz

DDR3L 1066 MHz

DDR3L 1066 MHz

Max. Capacity

8 GB

8 GB

8 GB

Socket

1 x 204-pin SODIMM (Support 1.35V DDR3L)

1 x 204-pin SODIMM (Support 1.35V DDR3L)

1 x 204-pin SODIMM (Support 1.35V DDR3L)

Display

Chipset

Intel® Atom SoC integrated

Intel® Atom SoC integrated

Intel® Atom SoC integrated

Graphic Engine

DirectX®11, Open GL3.0/ Open CL 1.1, OGL ES 2.0;Encode: H264, MPEG2/4, VC1, WMV9;Decode: H264, MPEG2

DirectX®11, Open GL3.0/ Open CL 1.1, OGL ES 2.0;Encode: H264, MPEG2/4, VC1, WMV9;Decode: H264, MPEG2

DirectX®11, Open GL3.0/ Open CL 1.1, OGL ES 2.0;Encode: H264, MPEG2/4, VC1, WMV9;Decode: H264, MPEG2

LVDS

Supports single channel 24-bit LVDS;Resolution: 1440 x 900 at 60Hz

Supports single channel 24-bit LVDS;Resolution: 1440 x 900 at 60Hz

Supports single channel 24-bit LVDS;Resolution: 1440 x 900 at 60Hz

VGA

Up to 2560 x 1600 at 60Hz

Up to 2560 x 1600 at 60Hz

Up to 2560 x 1600 at 60Hz

HDMI

-

-

-

Dual Display

Yes (VGA+LVDS or HDMI+LVDS)

Yes (VGA+LVDS or HDMI+LVDS)

Yes (VGA+LVDS or HDMI+LVDS)

Ethernet

Speed

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

Controller

Intel i210

Intel i210

Intel i210

Connector

RJ45 on rear I/O

RJ45 on rear I/O

RJ45 on rear I/O

Audio

CODEC

Realtek ALC888S

Realtek ALC888S

Realtek ALC888S

Interface

High Definition Audio (HD)

High Definition Audio (HD)

High Definition Audio (HD)

Connector

Line-in, Line out

Line-in, Line out

Line-in, Line out

Watchdog Timer

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Storage

mSATA

1 x half size mini PCIe slot

1 x half size mini PCIe slot

1 x half size mini PCIe slot

SATA

1, up to 3Gb/s (300 MB/s)

1, up to 3Gb/s (300 MB/s)

1, up to 3Gb/s (300 MB/s)

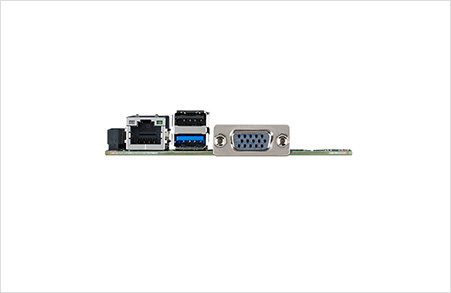

Rear I/O

Ethernet

1

1

1

VGA

1

1

1

USB

1 x USB 3.0 compatible with USB 2.0;1 x USB 2.0

1 x USB 3.0 compatible with USB 2.0;1 x USB 2.0

1 x USB 3.0 compatible with USB 2.0;1 x USB 2.0

DC Power Jack

1

1

1

Internal I/O

USB

2 x USB 2.0

2 x USB 2.0

2 x USB 2.0

Serial

1 x RS-232 from COM2 (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV); 1 x RS-232/422/485 from COM1 with auto-flow control

1 x RS-232 from COM2 (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV); 1 x RS-232/422/485 from COM1 with auto-flow control

1 x RS-232 from COM2 (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV); 1 x RS-232/422/485 from COM1 with auto-flow control

SMBus

1

1

1

GPIO

8-bit general purpose input/output

8-bit general purpose input/output

8-bit general purpose input/output

Expansion

Mini PCIe

1 x Half-size

1 x Half-size

1 x Half-size

MIOe

SMBus, 2 x USB2.0, LPC, 2 x PCIe x1, line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power, Power On, Reset

SMBus, 2 x USB2.0, LPC, 2 x PCIe x1, line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power, Power On, Reset

SMBus, 2 x USB2.0, LPC, 2 x PCIe x1, line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power, Power On, Reset

Power

Power Type

Single 12V DC power input (Supports DC power hot plug)

Single 12V DC power input (Supports DC power hot plug)

Single 12V DC power input (Supports DC power hot plug)

Power Supply Voltage

Supports single 12V input, ± 10%

Supports single 12V input, ± 10%

Supports single 12V input, ± 10%

Total peripheral power supply output

5V @ 3A for CPU board and MIOe module totally, 12V @ 2A for MIOe module

5V @ 3A for CPU board and MIOe module totally, 12V @ 2A for MIOe module

5V @ 3A for CPU board and MIOe module totally, 12V @ 2A for MIOe module

Power Consumption (Typical)

0.59A @ 12V (7.08W)

0.59A @ 12V (7.08W)

0.59A @ 12V (7.08W)

Power Consumption (Max)

0.76 A @ 12 V (9.12 W)

0.76 A @ 12 V (9.12 W)

0.76 A @ 12 V (9.12 W)

Power Management

ACPI

ACPI

ACPI

Battery

Lithium 3 V / 210 mAH

Lithium 3 V / 210 mAH

Lithium 3 V / 210 mAH

Environment

Operational Temperature

0 ~ 60° C with air flow 0.7m/s (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

-40 ~ 85° C (Operational humidity: 40° C @ 95% RH Non-Condensing)

-20 ~ 80° C (-4 ~ 176° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40° C ~ 85° C and 60° C @ 95% RH non-condensing

-40° C ~ 85° C and 60° C @ 95% RH non-condensing

-40° C ~ 85° C and 60° C @ 95% RH non-condensing

Physical

Dimension (mm)

100 x 72 mm (3.9" x 2.8")

100 x 72 mm (3.9" x 2.8")

100 x 72 mm (3.9" x 2.8")

Weight

0.46 kg (1.01 lb), weight of total package

0.46 kg (1.01 lb), weight of total package

0.46 kg (1.01 lb), weight of total package

Total Height

33.63 mm

33.63 mm

33.63 mm
