Part Number

MIO-2360N-S1A1E

MIO-2360N-S2A1E

Processor

CPU

Intel Celeron N3350

Intel Pentium N4200

Core Number

2

4

Frequency

1.1 GHz

1.1 GHz

L2 Cache

2 MB

2 MB

Max Turbo Frequency

2.4GHz

2.5GHz

Chipset

Intel Celeron / Atom SoC processor integrated

Intel Celeron / Atom SoC processor integrated

BIOS

AMI EFI 64 Mbit

AMI EFI 64 Mbit

Memory

Technology

DDR3L 1866 MHz

DDR3L 1866 MHz

Max. Capacity

8 GB

8 GB

Socket

1 x 204-pin SODIMM (Support 1.35V DDR3L)

1 x 204-pin SODIMM (Support 1.35V DDR3L)

Display

Chipset

Intel® Celeron/Atom SoC integrated

Intel® Celeron/Atom SoC integrated

Graphic Engine

DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC

DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC

LVDS

Supports single channel 24-bit LVDS;Resolution: 1440 x 900 at 60Hz

Supports single channel 24-bit LVDS;Resolution: 1440 x 900 at 60Hz

VGA

Up to 1920 x 1200 at 60 Hz

Up to 1920 x 1200 at 60 Hz

HDMI

Up to 3840 x 2160 at 30Hz

Up to 3840 x 2160 at 30Hz

Dual Display

Yes (VGA+LVDS+MIOe or HDMI+LVDS+MIOe)

Yes (VGA+LVDS+MIOe or HDMI+LVDS+MIOe)

Ethernet

Speed

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

Controller

Intel i210

Intel i210

Connector

RJ45 on rear I/O

RJ45 on rear I/O

Audio

Chipset

Realtek ALC888S, High Definition Audio (HD), Line-in, Line-out

Realtek ALC888S, High Definition Audio (HD), Line-in, Line-out

Watchdog Timer

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Storage

mSATA

1 x half size mini PCIe slot

1 x half size mini PCIe slot

SATA

1, up to 6Gb/s (600MB/s)

1, up to 6Gb/s (600MB/s)

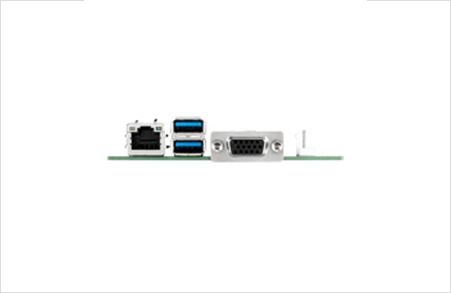

Rear I/O

Ethernet

1

1

VGA

1

1

HDMI

1 (support by request)

1 (support by request)

USB

2 x USB 3.0

2 x USB 3.0

DC Power Jack

1

1

Internal I/O

USB

2 x USB 2.0

2 x USB 2.0

Serial

2 x RS-232/422/485 from COM1 & COM2 with auto-flow control (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)

2 x RS-232/422/485 from COM1 & COM2 with auto-flow control (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)

SMBus

1

1

GPIO

8-bit general purpose input/output

8-bit general purpose input/output

Expansion

Mini PCIe

1 x Full-size

1 x Full-size

MIOe

SMBus, 2 x USB3.0, LPC, 2 x PCIe x1, line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power, Power On, Reset, SATA*

SMBus, 2 x USB3.0, LPC, 2 x PCIe x1, line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power, Power On, Reset, SATA*

Power

Power Type

Single 12V DC power input (Supports DC power hot plug)

Single 12V DC power input (Supports DC power hot plug)

Power Supply Voltage

Supports single 12V input, ± 10%

Supports single 12V input, ± 10%

Total peripheral power supply output

5V @ 3A for CPU board and MIOe module totally, 12V @ 2A for MIOe module

5V @ 3A for CPU board and MIOe module totally, 12V @ 2A for MIOe module

Power Consumption (Typical)

0.41 @ 12V (4.89 W)

TBD

Power Consumption (Max)

1.09 A @ 12 V (12.90 W)

TBD

Power Management

ACPI

ACPI

Battery

Lithium 3 V / 210 mAH

Lithium 3 V / 210 mAH

Environment

Operational Temperature

0 ~ 60° C with air flow 0.7m/s (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

0 ~ 60° C with air flow 0.7m/s (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40° C ~ 85° C and 60° C @ 95% RH non-condensing

-40° C ~ 85° C and 60° C @ 95% RH non-condensing

Physical

Dimension (mm)

100 x 72 mm (3.9" x 2.8")

100 x 72 mm (3.9" x 2.8")

Weight

0.47 kg (1.04 lb), weight of total package

0.47 kg (1.04 lb), weight of total package

Total Height

34.10 mm

34.10 mm
