Part Number

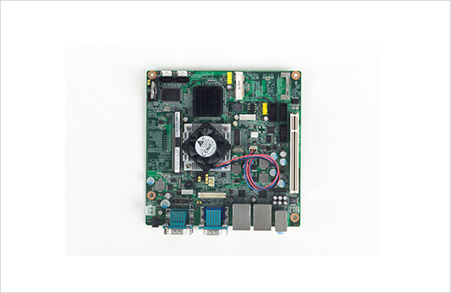

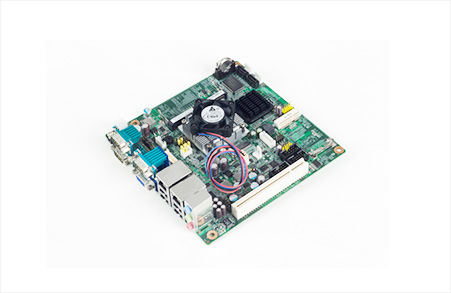

AIMB-212D-S6A1E

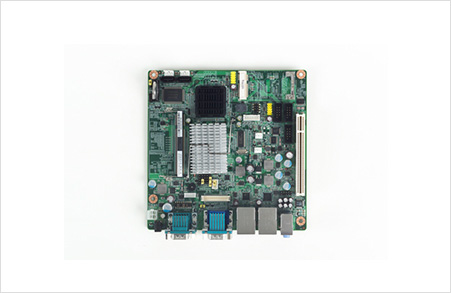

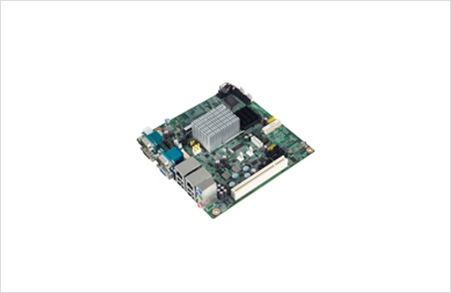

AIMB-212N-S6A1E

Slots

PCI, Mini-PCIe

Slot Type

1

1

PCI

1

1

Form Factor

Form Factor

mini ITX

mini ITX

Processor

CPU

Intel® Atom? D510

Intel® Atom? N450

CPU TDP

13 W

5.5 W

Frequency

1.66 GHz

1.6 GHz

Core Number

2

1

L2 Cache

1 MB

512 KB

BIOS

AMI PSI 16 Mbit

AMI PSI 16 Mbit

Chipset

Intel ICH8M

Intel ICH8M

Memory

Technology

DDR2 667MHz

DDR2 667MHz

Max. Capacity

2 GB

2 GB

Socket

1 x 200-pin SODIMM

1 x 200-pin SODIMM

Display

Controller

Intel Atom D510 intergrated

Intel Atom N450 intergrated

Video Interface

LVDS, VGA, Dual Display CRT+LVDS

LVDS, VGA, Dual Display CRT+LVDS

Graphic Memory

Share with system memory up to 224 MB

Share with system memory up to 224 MB

VGA

up to SXGA 2048 x 1536 @ 60Hz

up to SXGA 1400 x 1050 @ 60Hz

LCD (TTL/LVDS/eDP)

LVDS:single channel 18-bit up to WXGA 1366 x 768

LVDS:single channel 18-bit up to WXGA 1366 x 768

Multiple Display

Dual

Dual

Ethernet

Controller

GbE1: Intel 82567V; GbE2: Intel 82583V

GbE1: Intel 82567V; GbE2: Intel 82583V

Speed

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

Connector

RJ45 x 2

RJ45 x 2

Audio

Audio Interface

HD Audio

HD Audio

CODEC

Realtek ALC892, High Definition Audio (HD)

Realtek ALC892, High Definition Audio (HD)

Connector

3 (Mic-in, Line-out, Line-in)

3 (Mic-in, Line-out, Line-in)

Watchdog Timer

WatchDog Timer

Yes

Yes

Storage

SATA

2 x SATA II (Max. Data Transfer Rate 300 MB/s)

2 x SATA II (Max. Data Transfer Rate 300 MB/s)

CompactFlash

CompactFlash Type I/II

CompactFlash Type I/II

I/O

USB2.0

8

8

GPIO

1

1

COM Port

6(5 x RS-232, 1 x RS-232/422/485)

6(5 x RS-232, 1 x RS-232/422/485)

6(5 x RS-232, 1 x RS-232/422/485)

Power

Power Type

ATX, AT

ATX, AT

Connector

DC jack, internal 4pin

DC jack, internal 4pin

Power Adaptor

Yes

Yes

Environment

Operational Temperature

0 ~ 60° C (32 ~ 140° F)

0 ~ 60° C (32 ~ 140° F)

Non-Operational Temperature

-40~ 85° C

-40~ 85° C

Vibration Resistance

3.5 Grms (non OP)

3.5 Grms (non OP)

Physical

Dimension (mm)

170x 170 mm (without heatsink)

170x 170 mm (without heatsink)

Weight

1.04 kg (1.72 lb), weight of total package

1.04 kg (1.72 lb), weight of total package

Construction

with CPU cooler desing

with CPU cooler desing

Operating System

Microsoft Windows

Yes

Yes

Linux

Yes

Yes

SUSIAccess

Yes

Yes

Certification

EMC

CE, FCC

CE, FCC
