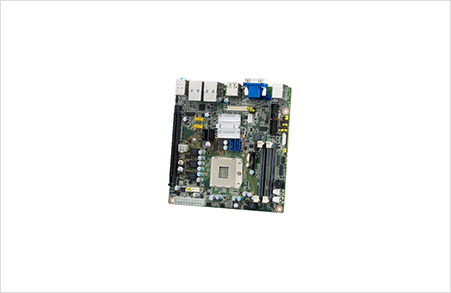

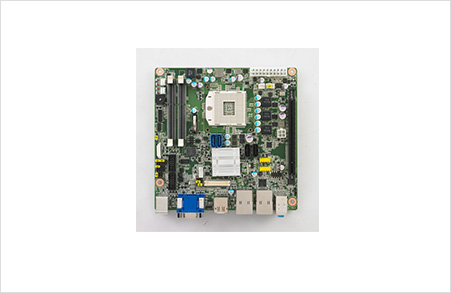

Part Number

AIMB-273G2-00A1E

Expansion

Slots

PCIe x16, Mini-PCIe

PCI Express x 16

1

Slot Type

1

Form Factor

Form Factor

mini ITX

Processor

CPU

Intel Core i7-3610QE / i7-2710QE / i5-3610ME / i5-2510E / i3-3120ME / i3-2330E / Celeron B810

CPU TDP

45 / 35 W

Frequency

2.3 / 2.1 / 2.7 / 2.5 / 2.4 / 2.2 / 1.6 GHz

Core Number

4/2

L3 Cache

6/3/2

BIOS

AMI EFI 64 Mbit

Chipset

Intel QM77

Memory

Technology

DDR3 1333 / 1600 MHz

Max. Capacity

16 GB

Socket

2 x 204-pin SODIMM

Display

Controller

Integrated Gfx Gen5.75

Graphic Engine

DirectX 10 and OpenGL 2.1 support

Graphic Memory

Share with system memory up to 2 GB

VGA

up to 2048 x 1536

LCD (TTL/LVDS/eDP)

LVDS: Single channel 24-bit / dual channel 48-bit LVDS up to 1920 x 1080

DDI (HDMI/DVI/DisplayPort)

HDMI: 1650 Mbps / channel @ 165 MHz

Multiple Display

Triple

Ethernet

Controller

GbE1: Intel 82579LM, GbE2: Intel 82583V

Speed

10/ 100/ 1000 Mbps

Connector

RJ45 x 2

Audio

Audio Interface

HD Audio

CODEC

Realtek ALC892, High Definition Audio (HD)

Connector

3 (Mic-in, Line-out, Line-in)

Watchdog Timer

WatchDog Timer

Yes

Storage

SATA

2 x SATA 3 (Max. Data Transfer Rate 300 MB/s)

CFast

1

I/O

USB3.0

4

USB2.0

4

GPIO

1

COM Port

2 ( RS-232 )

TPM

Yes

Power

Power Type

ATX, AT

Connector

ATX20P

Environment

Operational Temperature

0 ~ 60° C (32 ~ 140° F)

Non-Operational Temperature

-20~ 70° C

Vibration Resistance

3.5 Grms (non OP)

Physical

Dimension (mm)

170x 170 mm (without heatsink)

Weight

1.04 kg (1.72 lb), weight of total package

Construction

with CPU cooler design

Operating System

Microsoft Windows

Yes

Linux

Yes

SUSIAccess

Yes

Certification

EMC

CE, FCC
