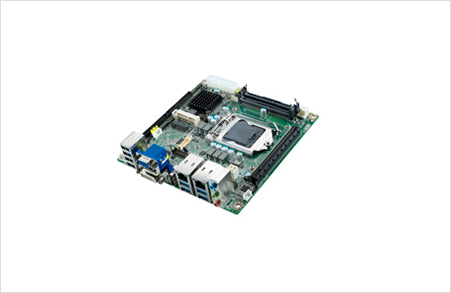

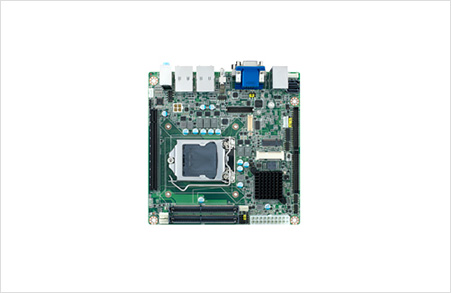

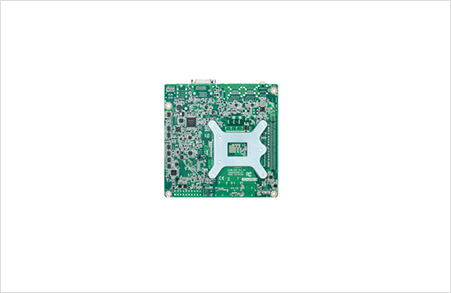

Part Number

AIMB-205G2-00A1E

Processor

CPU

6th Gen. Intel Core i7/i5/i3 Series Prosssor

CPU TDP

65W / 35W

Frequency

2.3G~3.4GHz

Core Number

4/2

L3 Cache

2 ~ 8MB

BIOS

AMI EFI 128Mbit

Chipset

Intel H110

Memory

Technology

DDR4 2133MHz SO-DIMM

Max. Capacity

32GB (up to 16GB per SO-DIMM)

Socket

2 x 260 Pin DDR4 SO-DIMM

Display

Controller

CPU Integrated

Graphic Engine

Intel HD Graphic

Graphic Memory

Share with system memory up to 2 GB

DDI (HDMI/DVI/DisplayPort)

DVI-D/DP/VGA

LVDS

48-bit LVDS up to 1920 x 1200 at 60Hz

Multiple Display

Dual

Video Interface

DP/DVI-D/VGA support dual display

Expansion

PCI Express x 16

1

Slot Type

1 (F/S, mSATA support);1 M.2 (B-key)

Slots

PCIex16,mini-PCIe, M.2

Ethernet

Controller

LAN1/ LAN2: Realtek RTL8111G

Speed

10/ 100/ 1000 Mbps

Connector

RJ45 x 2

Audio

Audio Interface

HD Audio

CODEC

Realtek ALC892, High Definition Audio (HD)

Connector

3 (Line-in, Line out, Mic-in)

Watchdog Timer

WatchDog Timer

Yes

Storage

CFast

0

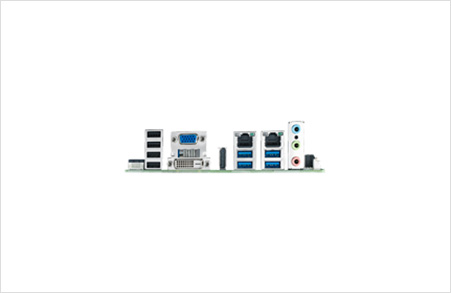

I/O

COM Port

7 x RS-232, 1 x RS-232/422/485

GPIO

8-bit

USB2.0

6

TPM

Optional

USB3.0

4

Power

Connector

ATX20P

Power Type

ATX

Environment

Operational Temperature

0 ~ 60° C (32 ~ 140° F)

Non-Operational Temperature

-40~ 85° C

Vibration Resistance

3.5 Grm (Non-Operation Mode)

Physical

Dimension (mm)

170x 170 mm (without heatsink)

Weight

1.04 kg (1.72 lb), weight of total package

Construction

with CPU cooler design

Operating System

Microsoft Windows

Yes

Linux

Yes

SUSIAccess

Yes

Certification

EMC

CE, FCC
